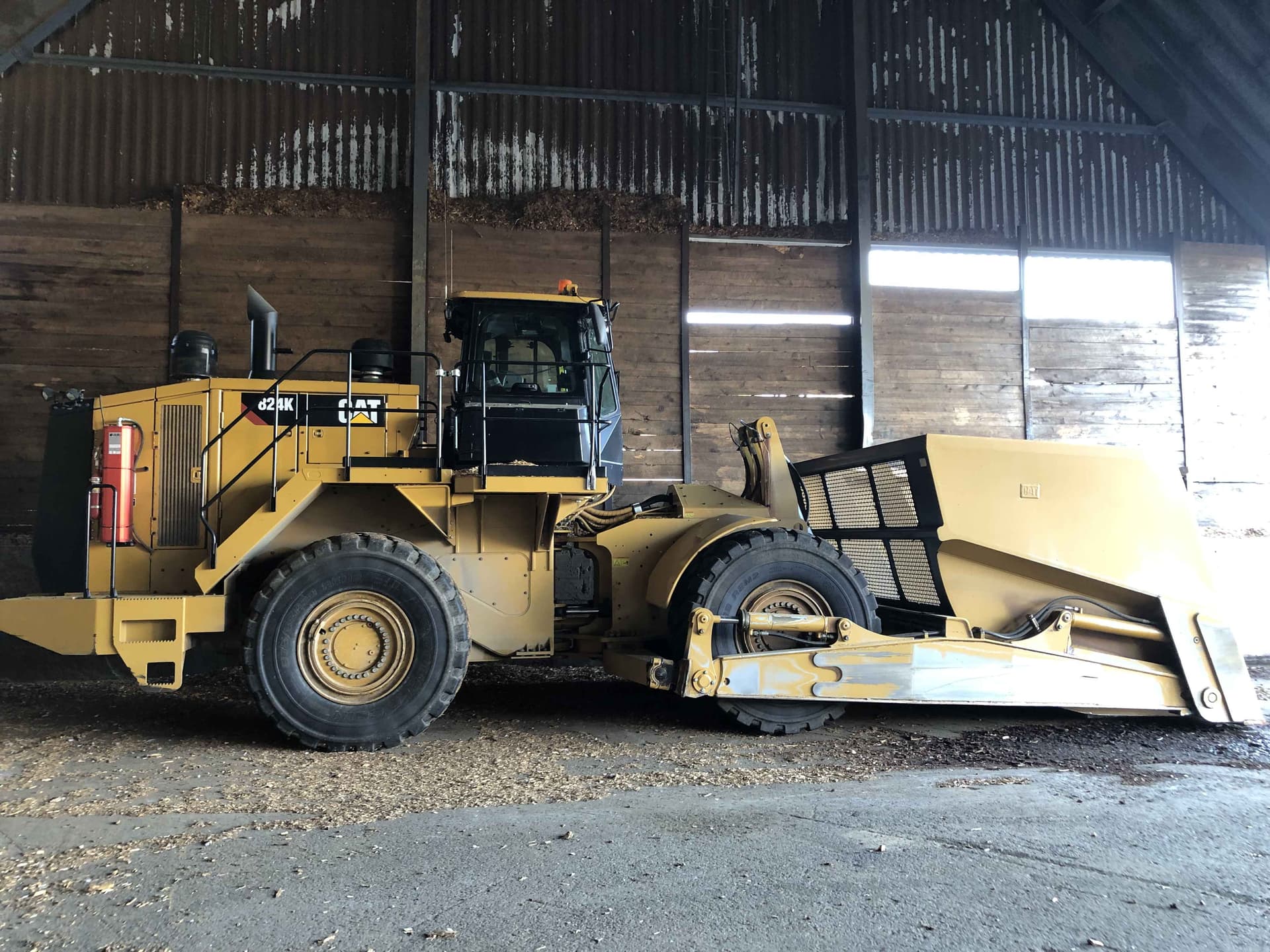

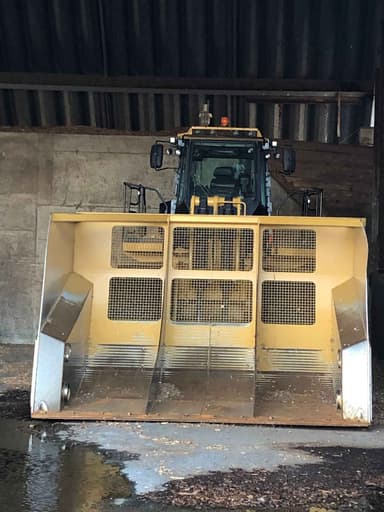

2019 CAT 824K WHEEL DOZER WITH 27 YARD CAPACITY

HOURS: 19,157.7

TECHNICAL SPECIFICATIONS

ENGINE:

MANUFACTURER: CATERPILLAR

MODEL: C7.1 ACERT

NET HORSEPOWER: 168 KW (225 HP) AT 1700 RPM

DISPLACEMENT: 7.1 LITERS

NUMBER OF CYLINDERS: 6

BORE AND STROKE: 105 MM X 135 MM

COMPRESSION RATIO: 17.2:1

FUEL TYPE: DIESEL

TRANSMISSION:

TYPE: 4-SPEED POWERSHIFT

TORQUE CONVERTER TYPE: SINGLE STAGE, 3-ELEMENT

SHIFT TYPE: PLANETARY POWER SHIFT WITH ELECTRONIC CONTROL

FORWARD AND REVERSE SPEEDS: 4

HYDRAULIC SYSTEM:

TYPE: OPEN CENTER, LOAD SENSING

SYSTEM PRESSURE: 2812 PSI

PUMP FLOW CAPACITY: 92.1 GAL/MIN

LIFT ARMS: DOUBLE ACTING CYLINDERS

BUCKET: DOUBLE ACTING CYLINDER

LIFT AND DUMP PERFORMANCE:

RAISE TIME: 7.1 SEC -

DUMP TIME: 1.6 SEC -

LOWER TIME: 3.5 SEC

STEERING:

- TYPE: ARTICULATED -

TURNING RADIUS: 19 FT 7 IN. -

STEERING MODE: KL

BRAKES:

 TYPE: WET DISC, MULTIPLE CALIPER -

SERVICE BRAKES: ALL FOUR WHEELS -

PARKING BRAKE: SPRING APPLIED, HYDRAULICALLY RELEASED TIRES: -

SIZE: 23.5R25

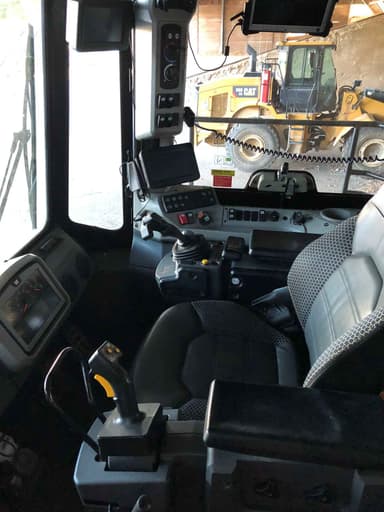

CAB:

ROPS/FOPS WITH A/C -

SEAT: AIR SUSPENSION -

CONTROLS: PILOT OPERATED JOYSTICKS -

INSTRUMENTATION:

DIGITAL DISPLAY WITH GAUGES FOR ENGINE SPEED, COOLANT TEMPERATURE, HYDRAULIC PRESSURE, FUEL LEVEL, AND TRANSMISSION

SPEED DIMENSIONS:

LENGTH: 29 FT 1 IN.

WIDTH: 11 FT 4 IN.

HEIGHT: 19 FT 3 IN.

GROUND CLEARANCE: 15 IN.

WEIGHT:

OPERATING WEIGHT: 41644 LBS (18890 KG)

BUCKET CAPACITY:

VOLUME: 3.75 - 5.75 CU YDS (2 - 4 M³)

MAX BREAKOUT FORCE:

FORCE: 40690 LBF (181 KN)

ADDITIONAL SPECIFICATIONS:

MAXIMUM TRAVEL SPEED: 16 MPH

MAXIMUM GRADEABILITY: 30%

MAXIMUM BLADE DOWNFORCE: 50,000 LBS

MAXIMUM BLADE LIFT CAPACITY: 40,000 LBS

TURNING CIRCLE DIAMETER: 37 FT

SOUND PRESSURE LEVEL: 78 DBA

EMISSIONS RATING: TIER 4 FINAL
